Alpha roadmap: pattern recognition and the next providers

Nodal.PatternRecognition sits above providers as an optional analytics shell, turning canonical paths into explainable discoveries.

Nodal Framework is still an alpha, which is exactly the right time to test its most ambitious architectural claim: a provider-neutral graph model can support portable intelligence without flattening the native strengths of each graph engine.

P2 remains the production-hardening track. P3 starts the optional Nodal.PatternRecognition package. P4+ records the research horizon so experimental ideas do not silently become compatibility promises.

Nodal.PatternRecognition is not another database provider. It is an optional analytics shell above every provider: Neo4j, TigerGraph, and future engines keep their own query languages, transports, and native accelerators, while the shell consumes Nodal's canonical nodes, relationships, paths, events, and capability declarations. Provider pushdown is an optimization; the analysis contract and its evidence remain portable.

What remains in P2

P2 will certify live analytics versions, harden application samples and compatibility tests, expand migration lifecycle tooling, define analytics write-back semantics, add event-driven mutation and outbox integration, publish machine-readable capabilities, and establish stable documentation and package promotion.

These tasks are prerequisites for Pattern Recognition. Temporal learning needs reliable events. Persisted discoveries need explicit write semantics. Native acceleration needs versioned provider capabilities.

What P3 will deliver

P3 contains eighteen work items across four slices:

1. Package architecture, canonical contracts, temporal semantics, the analysis DSL, and bounded extraction.
2. Path signatures, heterogeneous similarity, sparse top-k similarity graphs, communities, and frequent sequences.
3. Directed temporal transition graphs, provider pushdown, and versioned pattern evidence.
4. Tests, benchmarks, an e-commerce showcase, documentation, and the first alpha package.

The first release will discover repeated path families and temporal transitions. It will not claim causal inference, unrestricted subgraph mining, or a trained temporal neural network.

Performance-first similarity

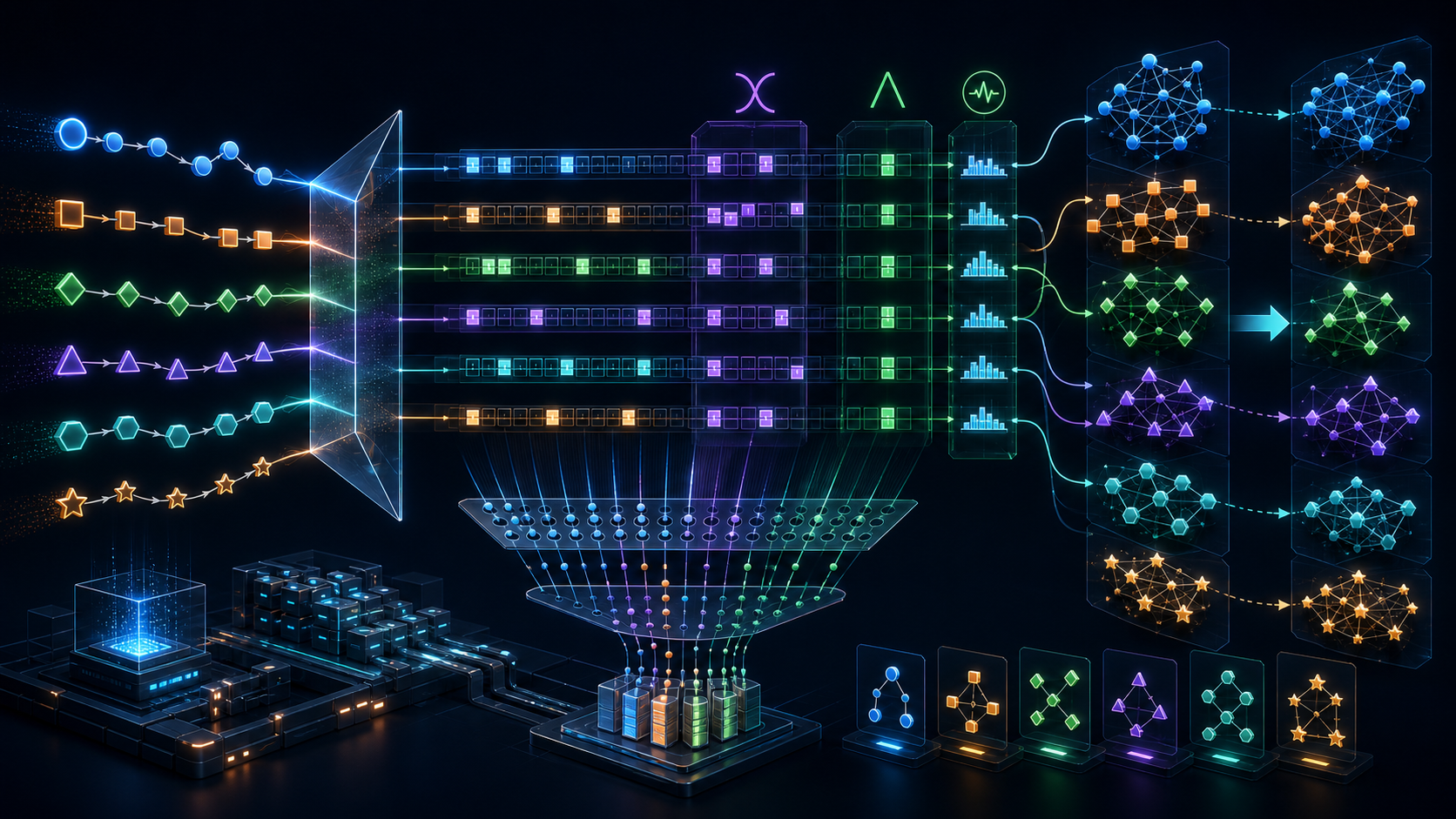

The first experiment separates encoding, exact bitset kernels, candidate filtering, and community construction so every performance claim remains measurable.

A naive comparison of every path with every other path is quadratic. One million paths would imply roughly one trillion pair comparisons before useful filtering. P3 therefore treats candidate generation as part of the public execution semantics, not as an invisible implementation detail.

The engine will use three lanes:

Exact structural lane

Canonical node labels, relationship types, direction, bounded property buckets, and temporal buckets form a stable path signature. Hashing and grouping discover exact repeats in linear time relative to the encoded path volume.

For pairwise structural comparison, those features are also encoded as typed multi-hot bitsets. A path is not one category, so a single one-hot value would be insufficient. Separate feature families preserve meaning:

• node-label and relationship-type presence;
• direction-aware relationship types;
• position-aware (position, type) tokens;
• typed path n-grams;
• bounded property and temporal buckets.

The bitsets make several exact binary metrics inexpensive:

difference      = popcount(A XOR B)
intersection    = popcount(A AND B)
union           = popcount(A OR B)
hamming         = difference / featureCount
jaccard         = intersection / union
binary cosine   = intersection / sqrt(popcount(A) * popcount(B))

Presence-only bitsets are fast but discard order. Position-aware and n-gram families retain local order, while typed edit distance remains the exact fallback for variable-length sequences where shifting one hop should not invalidate every following position.

Sparse heterogeneous lane

Typed edge and node n-grams form sparse weighted features. An inverted index, length buckets, endpoint types, and MinHash/LSH-style candidate generation avoid an all-pairs scan. Exact weighted Jaccard, typed edit distance, PathSim, or HeteSim-style scoring is applied only to candidates.

Heterogeneous scoring keeps each feature family separate and combines normalized scores with explicit weights. This prevents a high-cardinality property family from overwhelming relationship direction or temporal shape. Alpha weights are configuration, recorded with every result, and never learned silently.

Dense semantic lane

Optional embeddings support semantic similarity through a top-k approximate nearest-neighbor index. This lane remains replaceable and opt-in; canonical exact results must never depend on a particular model or vector index.

Dense vectors use cosine or dot-product kernels over contiguous spans. Sparse and dense representations therefore coexist: bitsets answer exact structural questions, while vectors retrieve semantically close candidates.

.NET execution paths

The portable kernel stores dense bitsets as contiguous ulong words and exposes read-only span-based operations. The baseline uses BitOperations.PopCount, which uses hardware intrinsics when the runtime and processor support them. Candidate vector paths use the widest supported Vector512, Vector256, or Vector128 bitwise operations and retain a scalar fallback.

Vector width alone is not accepted as proof of speed. Popcount reduction, short-buffer overhead, alignment, density, and CPU architecture can make a narrower or scalar loop faster. Every execution path must return the same score and earn its dispatch threshold through benchmarks. Dense floating-point vector scoring is benchmarked separately from binary bitset scoring.

All lanes produce a sparse similarity graph. Community detection runs over that graph rather than a dense similarity matrix. Every result records the metric, weights, candidate strategy, cutoff, provider execution, and evidence needed to explain or reproduce it.

Initial performance gates are:

• no unbounded all-pairs execution;
• deterministic exact signatures and scores;
• explicit memory, path-count, hop, time-window, and candidate budgets;
• streaming and cancellation throughout extraction and scoring;
• allocation, throughput, latency, and peak-memory benchmarks;
• recall-at-k reporting whenever an approximate candidate/index strategy is compared with an exact baseline;
• identical canonical results across providers when their declared semantics match.

The benchmark matrix covers:

Dimension	Initial values
Feature width	256, 1,024, 4,096, and 16,384 bits
Feature density	0.5%, 5%, 25%, and 50%
Path length	2, 4, 8, and 16 hops
Corpus size	10,000, 100,000, and 1,000,000 paths
Candidate count	exact all-pairs only for oracle-sized data; top-k candidate budgets for scale
CPU path	scalar, unrolled popcount, Vector128, Vector256, and Vector512 when supported

Every optimized result is checked against a simple scalar oracle. Published results report comparisons per second, nanoseconds per comparison, allocation, bytes per path, index-build time, peak memory, top-k latency, and recall-at-k for approximate candidate strategies. Sparse sorted integers and a compressed bitmap candidate are benchmarked alongside dense bitsets so low-density paths do not pay for thousands of zero words.

Native graph operations will be pushed down only when the provider can preserve the requested semantics. The portable .NET engine handles the remaining canonicalization, candidate refinement, evidence, and explanation stages.

First experiment: scalar wins the opening round

On August 21, 2026, the first executable P3 slice compared scalar, manually unrolled, and Vector256 kernels on .NET 10 using 256, 4,096, and 16,384-bit vectors at 5% and 25% density. All kernels returned identical exact scores and allocated zero bytes per comparison.

The scalar BitOperations.PopCount loop was fastest in every measured case: approximately 8-10 ns at 256 bits, 66-74 ns at 4,096 bits, and 202-209 ns at 16,384 bits. Manual unrolling was 1.2-2.4 times slower; the first Vector256 lane-reduction candidate was 1.4-2.5 times slower. The result makes the scalar loop the initial production kernel and keeps SIMD as an evidence-gated research track rather than a marketing assumption.

The reproducible benchmark summary records the machine, runtime, full matrix, limitations, and command.

The next provider tracks

Nodal.Memgraph is the first expansion candidate. Memgraph supports Cypher and Bolt-compatible clients, runs locally, and offers graph analytics through MAGE. That makes it a fast provider slice, but not a Neo4j alias: dialect, procedure, transaction, and analytics capabilities will be certified independently.

Nodal.ArangoDB is the second candidate. Its HTTP transport, AQL traversal language, named graphs, document/edge collections, and transaction behavior exercise different parts of Nodal's abstraction. ArangoDB's official driver catalog does not currently include .NET, so Nodal will begin with a narrow, testable HTTP transport rather than adopting an unowned general-purpose client.

References:

• Memgraph
• ArangoDB AQL graph traversals
• ArangoDB official driver catalog

Schedule: August 24-30, 2026

Date	Focus	Exit condition
Monday, August 24	Convert P2, P3, and P4+ into GitHub issues and dependency links	Every task has scope, acceptance criteria, and an owner-ready label
Tuesday, August 25	Pattern Recognition ADR, package boundaries, and canonical contracts	Architecture and dependency direction are reviewable
Wednesday, August 26	Exact signatures, sparse feature encoding, and benchmark harness	Exact baseline and representative datasets run locally
Thursday, August 27	Candidate generation and heterogeneous similarity spike	No all-pairs materialization; recall and throughput are measurable
Friday, August 28	Nodal.Memgraph provider scaffold and live Docker smoke slice	Connection, bounded query, and normalized result smoke tests pass
Saturday, August 29	Nodal.ArangoDB transport/compiler scaffold	Authenticated HTTP health check and parameterized AQL query slice pass
Sunday, August 30	QA review, benchmark report, documentation, and next-round decision	Results, limitations, and follow-up tasks are published

This is an alpha execution calendar, not a promise that two providers and a new analytics product reach feature parity in seven days. The week's goal is to establish tested vertical slices and use measured evidence to determine the next implementation round.

Beyond P3

P4+ keeps full frequent-subgraph mining, overlapping and evolutionary communities, concept drift, learned path embeddings, probabilistic next-event models, temporal point processes, temporal graph neural networks, and model governance outside the first package contract.

The distinction matters: P3 must produce a fast, explainable, provider-aware engine before P4 teaches it more sophisticated models.
